cctv video balun

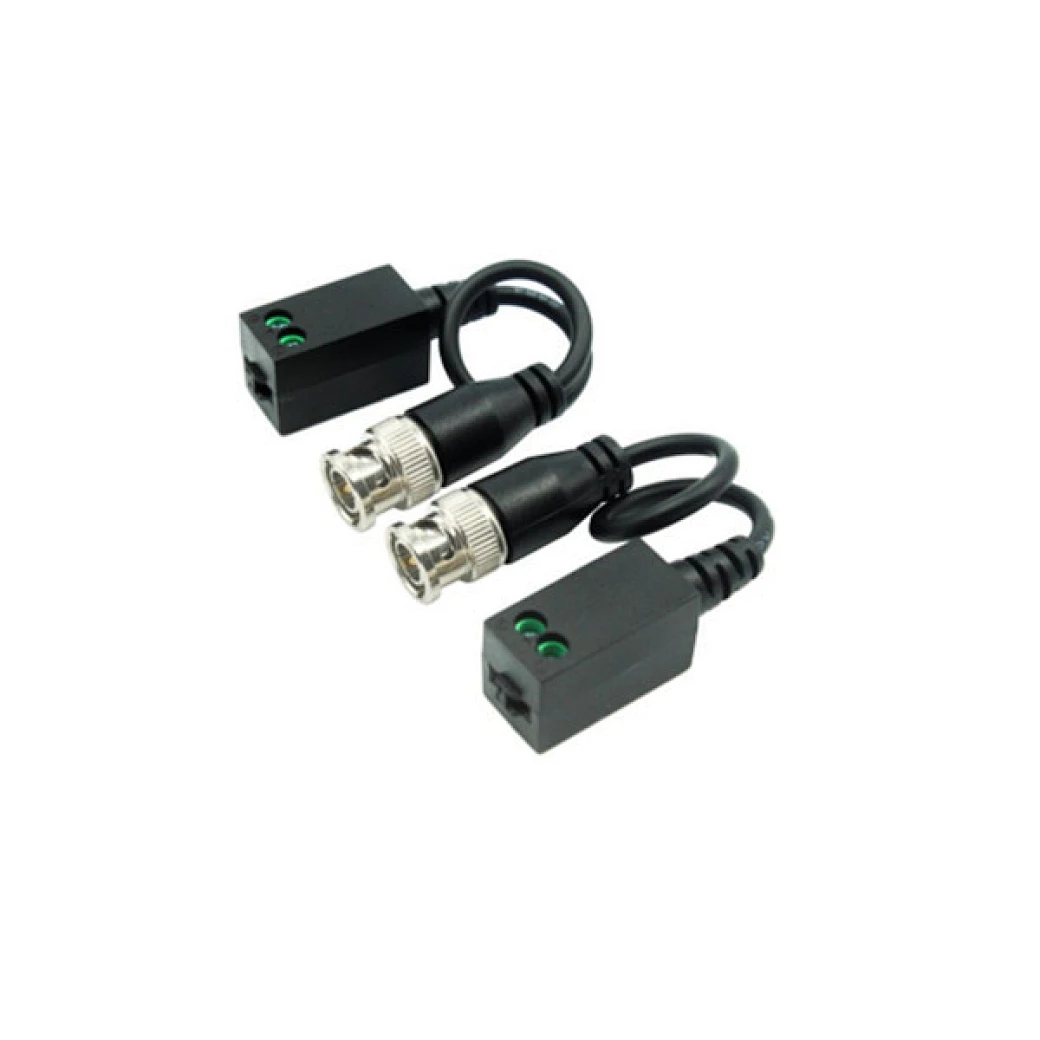

Screw terminal,1 channel passive HD cctv video balun for TVI/CVI/AHD/CVBS

Passive HD CVI/AHD/TVI/CVBS cctv video balun

• Color HD video up to 500m with active receiver
• Color HD video transmission distance with passive transceiver:
• HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;
• HDTVI 720P/1080P: 250M; 5Mp:200M ;
• AHD 720P: 350M / 1080P: 200M;5Mp:200M
• Built in TVS surge protection



Specifications:
cctv video balun Material: ABS Plastic
cctv video balun Connectors: Male BNC and RJ45 Female Ports
Frequency Response: DC to 8MHz
Attenuation: 0.5dB typ
CMRR (Common Mode Rejection Ratio): 60 dB
Impedance for BNC: 75 ohms
Impedance for RJ45: 100 ohms
Working temperature: -10 to 70 degC
Storage temperature: -20 to 70 degC
Humidity: 0 to 95%
