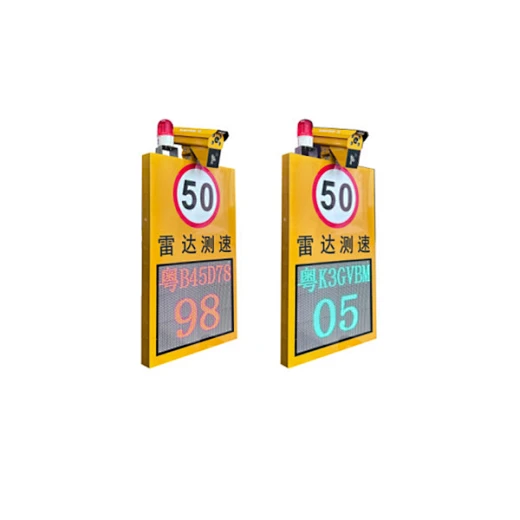

Car Radar Speed Detector With Camera
CSK-TR03D
Car Radar Speed Detector With Camera
Quantity
Capture machine parameters: 1. Built-in 4 megapixel high-speed special license plate recognition capture machine, can identify all the license plate numbers can be normal driving on the road, including military and police and Hong Kong and Macao license plate
2.SDK, support for docking with other platforms, standard ONVIF protocol and GB28181 protocol 3.Built-in high-definition fixed-focus lens 16mm/25mm, can identify the front and rear license plate numbers within the range of 2 lanes, capture rate of 99% or more
4. With local storage function, standard 32G TF memory card, can store 30W + speed capture pictures and text information, and can be downloaded in high definition.
5. The device supports video, external triggering (ground sensor coil / radar), the network to send signals in one of the three ways or a variety of capture mode
6. Capture pictures can be superimposed on the time, date, license plate number, driving speed, the installation of road and other information 7. Can be connected to an external LED display, showing the license plate number of the vehicle currently captured, the current speed and whether the word speeding 8. Communication interface: TCP / IP Speed radar parameters: 1. Built-in flat narrow-beam 24.15GHz radio frequency radar, the angle of the small, accurate positioning 2. Thunder Vision All-in-One speed measuring machine Range: 1-80 kilometers per hour
3. Speed accuracy: ± 1 kilometer / hour
Display parameters:
1.3 lines of 12-word license plate number display: display captured license plate number, using P4.75 small pitch outdoor bright screen, small light impact, speeding full-screen red font, not speeding green display; the first line: license plate number, normal driving / you have been over the speed limit, speed triggered audible and visual alarm (optional); the second and third lines: speed value
2. Speed limit: reflective speed limit sticker
3. Communication interface: TCP/IP
4. Appearance size: appearance: 1150mm * 720mm * 100mm; information screen: 640 * 480mm
5.Working voltage: standard AC220V, or customized DC12V (solar power, battery power)
6.Power: 50W
7.Working environment temperature: -25℃-80℃, relative humidity: =<95% 8.Two kinds of complementary light: constant light: with the light sense, daytime is not bright at night; strobe light: daytime is not bright when there is no car to come, the night is always bright; regardless of the daytime or nighttime, when capturing the license plate when the light burst flash, prompting the driver has been captured. Standard with constant light
